产品中心
Products
风机过滤器单元
产品介绍

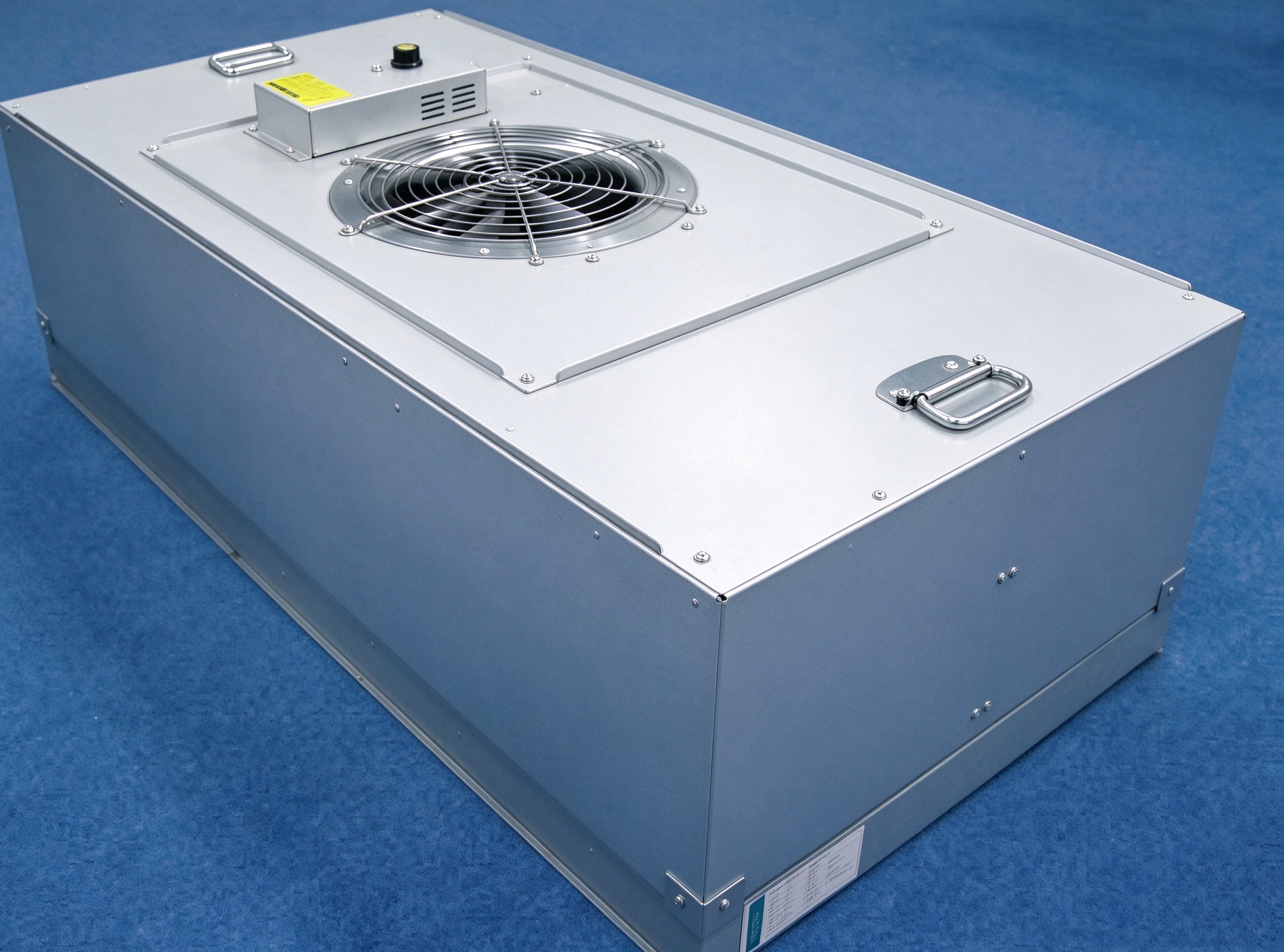

FFU是风机和过滤器的组合，也可称为“自带风机的过滤设备”。FFU通常安装在洁净 室的送风末端，一般放置在吊装的干式垫片密封龙骨框架上，FFU上面部分为风机模 块，下面部分为过滤器。根据洁净度的要求，过滤器可为不同等级的高效（HEPA） 或超高效(ULPA)过滤器,为洁净室提供洁净空气。
FFU is the combination of the fan and filter, also known as "filtering equipment of the air blower. FFU quarter is usually installed in the clean room terminal air supply, usually placed in the dry type gasket seal of the hoisting on keel frame, above the FFU part is the fan module, the following sections for the filter. According to the requirements of cleanliness, the filter can provide different levels of efficiency (HEPA) or super efficient (ULPA) filter, clean air for clean room.

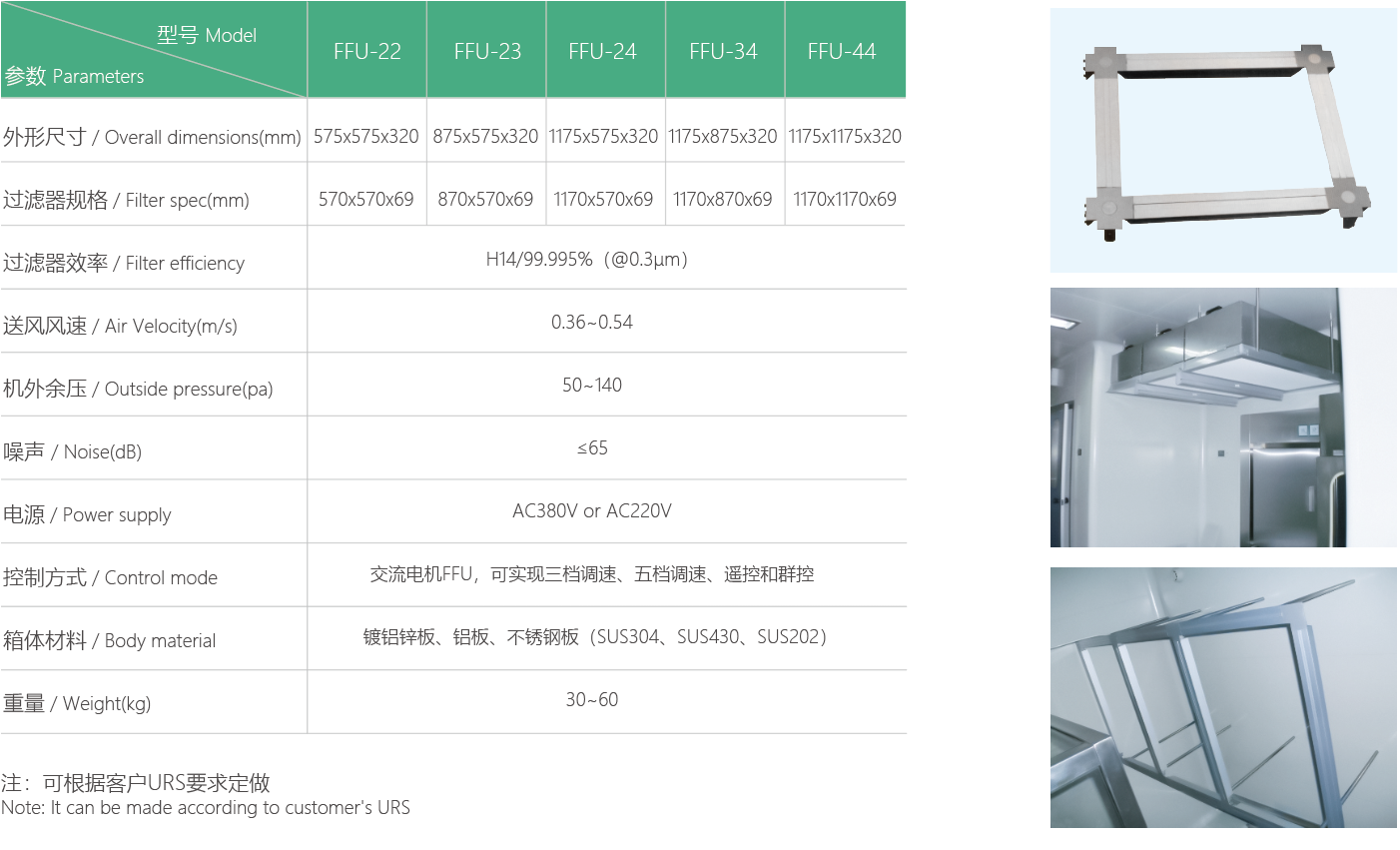

技术参数

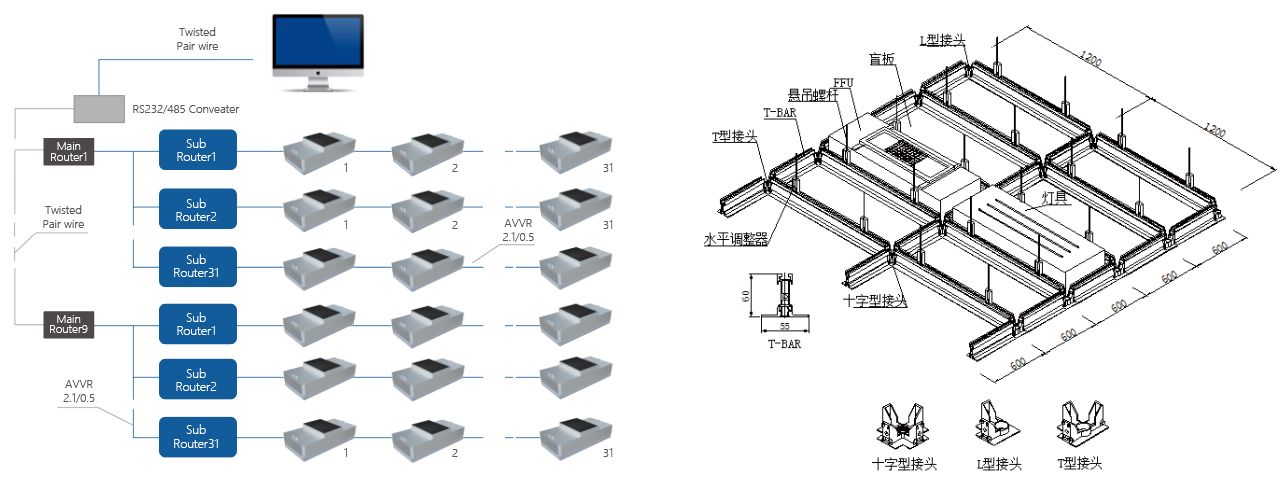

FFU专用龙骨：
为配合本公司生产的FFU系统，本公司自行设计制造了模块化铝合金吊顶龙骨，简称T-BAR龙骨。T-BAR龙骨配合FFU使用，可在不同级别的洁净室环境中获得高级别的洁净环境。
To cope with this company produces the FFU system, the company made the modular design aluminum ceiling keel, hereinafter referred to as T - BAR keel. T - BAR keel used with head, can be in different levels of clean room environment for high-level clean environment.
产品特征
01整体不锈钢结构，耐用易清洁。 FFU is convenient and flexible, can be applied to any structure and the characteristics of different levels of clean room . | 02FFU采用独特的型腔和分流引导式风道设计，提高了出风面的风速均匀性。 Adopt unique cavity and shunt heuristic duct design, improved the uniformity of the wind speed of the wind. |
03由防锈铝板、不锈钢、镀铝锌板和喷粉的钢 板制作成的FFU箱体，结构精巧坚固。 By anti-rust aluminum plate, stainless steel, aluminium zinc plate and powder spraying steel plate made of FFU box and compactness. | 04采用强力风机，可在高静压下长期工作，但又可同时维持低噪音。 The powerful fan, can long-term work under the high static pressure, but at the same time maintain low noise. |
05FFU的控制可选择三速或五速本地控制、三速遥控、计算机群控等多种控制方式。 FFU control can choose three or five speed local control, three speed control, computer group control to control a variety of ways. | 06弹性、多元化配置除标准机型外，可根据客户需求，制作不同规格的非标产品。 Elastic, diversified configuration in addition to the standard model, can according to customer requirements, production of various specifications of non-standard products. |
