生物安全柜
产品介绍
生物安全柜是生命科学实验室专用负压洁净防护设备，通过精准可控的层流气流与高效过滤系统，有效阻隔病原微生物、生物气溶胶扩散，实现人员安全、样品安全、环境安全三重防护。设备严格按照 GB 41918-2022、YY 0569-2011 标准生产，是医院、疾控、生物医药、科研实验室必备的核心净化安全设备。市面主流应用为Ⅱ级 A2、Ⅱ级 B2 型生物安全柜。
The biological safety cabinet is a specialized negative pressure clean protection device for life science laboratories. Through precise and controllable laminar airflow and efficient filtration systems, it effectively blocks the spread of pathogenic microorganisms and biological aerosols, achieving triple protection for personnel, samples, and the environment. The equipment is produced in strict accordance with the standards of GB 41918-2022 and YY 0569-2011. It is a core purification and safety equipment essential for hospitals, disease control centers, biomedicine, and research laboratories. The mainstream applications on the market are type II A2 and type II B2 biological safety cabinets.
产品特征
01三重安全防护：负压腔体结构，有效防止气溶胶外溢，配备紫外灯与前窗互锁功能，杜绝误操作风险。 Triple safety protection: Negative pressure chamber structure effectively prevents aerosol leakage. Equipped with ultraviolet lamp and interlock function with the front window to eliminate the risk of improper operation. | 02超高过滤性能：配置ULPA超高效过滤器，对0.12μm 微粒过滤效率≥99.999%，保障工作区域高洁净度。 Ultra-high filtration performance: Configured with ULPA ultra-efficient filter, with a filtration efficiency of ≥ 99.999% for 0.12μm particles, ensuring high cleanliness in the working area. |

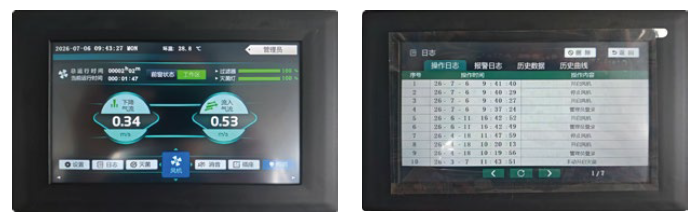

03洁净易清洁结构：工作区采用304/316L 不锈钢一体圆弧成型，无清洁死角、耐腐蚀、耐反复消杀。 Clean and easy-to-clean structure: The working area is made of 304/316L stainless steel with an integrated curved shape, without cleaning dead corners, corrosion-resistant, and resistant to repeated disinfection. | 04智能稳定运行：实时监测下沉风速、流入风速，具备风速异常、滤芯失效、设备故障声光报警及寿命提醒功能。 Intelligent stable operation: Real-time monitoring of downward wind speed and inflow wind speed, equipped with sound and light alarm functions for abnormal wind speed, filter failure, equipment failure, and life reminder. |
05低噪节能舒适：采用静音直流风机，运行稳定、噪音低，长期运行能耗低。 Low noise, energy-saving, and comfortable: Uses silent DC fan, stable operation, low noise, and low energy consumption during long-term operation. | 06合规可验收：整机符合国标、GMP 评审、实验室资质评审要求，资质齐全。 Compliant and verifiable: The entire machine complies with national standards, GMP review, and laboratory qualification review requirements, with complete qualifications. |
常规规格
设备分为单人标准型、单人加宽型、双人通用型、双人加宽型，可适配方舱实验室、常规实验室、高通量检测、药企研发等不同场地需求，支持分体式结构，方便老旧实验室改造、窄通道搬运安装。
Ⅱ级A2型：70%内循环、30%外排，无需外接排风管道，适配常规微生物、细胞培养实验，节能高效、通用性强。
Ⅱ级B2型：100%全新风全排风，需外接独立排风系统，适配挥发性试剂、有毒有害、高致病性病原实验场景。
The equipment is divided into single-person standard type, single-person extended type, double-person general type, and double-person extended type. It can meet the requirements of different venues such as cabin laboratories, conventional laboratories, high-throughput testing, and pharmaceutical research and development, and supports a modular structure, facilitating the renovation of old laboratories and the transportation and installation in narrow channels.
Type II A2: 70% internal circulation, 30% external discharge, no need for external exhaust ducts, suitable for conventional microorganisms and cell culture experiments, energy-saving and highly efficient, with strong versatility.
Type II B2: 100% fresh air and full exhaust, requires an independent exhaust system, suitable for volatile reagents, toxic and harmful, and highly pathogenic pathogen experimental scenarios.
应用范围
广泛适用于各级医院检验科、PCR实验室、疾控中心、疫苗与生物医药GMP车间、细胞培养实验室、第三方医学检测、出入境检疫、高校科研院所、动物实验室等所有涉及病原微生物操作的洁净场景。
It is widely applicable to all levels of hospital laboratories, PCR laboratories, disease control centers, GMP workshops for vaccines and biomedicine, cell culture laboratories, third-party medical testing, entry-exit quarantine, universities and research institutes, animal laboratories, and all other clean environments involving the operation of pathogenic microorganisms.
技术参数
