产品中心
Products

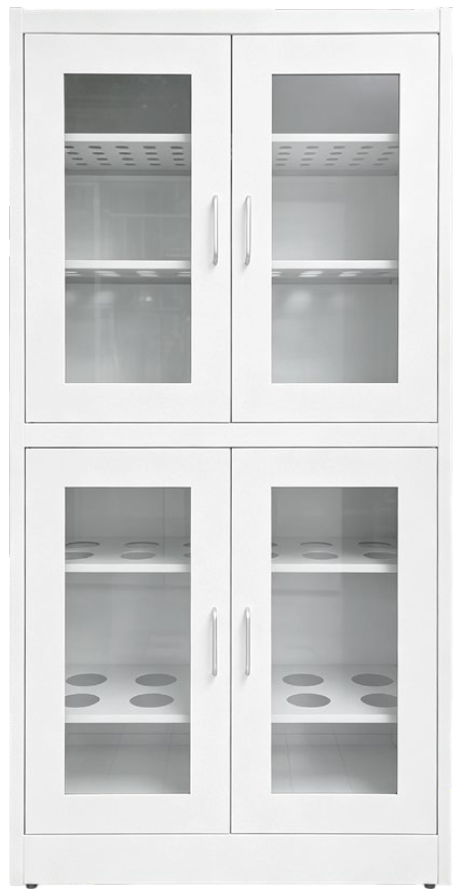

器皿柜
产品介绍
器皿柜是实验室专用储物柜体，主要用于清洗后的烧杯、容量瓶、锥形瓶、量筒、滴定管、培养皿等玻璃实验器皿的收纳、沥干与存放。柜体自带沥水、通风结构，可快速风干器皿残留水分，避免玻璃器皿积水滋生霉菌、磕碰破损；分为立式落地器皿柜、台下内嵌器皿柜、悬挂式器皿柜，配套实验台、清洗池使用，符合 JG/T 417-2013 实验室家具行业标准。
Glassware cabinet is special storage furniture for laboratories, used to store and air-dry cleaned glassware such as beakers, volumetric flasks, measuring cylinders and petri dishes. Equipped with draining and ventilation structure to remove residual water and prevent mold or breakage. It includes floor-standing, under-bench and wall-mounted types, fully compliant with JG/T 417-2013 standard.
应用范围
1、生物医药实验室：无菌玻璃器皿、培养皿、移液管分类存放沥干；
2、医院、PCR、疾控化验室：临床检测玻璃耗材收纳；
3、第三方检测机构：水质、食品、化妆品前处理玻璃器皿存储；
4、高校化学、农林、环境教学实验室：常规玻璃仪器统一收纳；
5、化工、新材料研发实验室：滴定、蒸馏、反应类玻璃器皿存放；
6、GMP 洁净配套化验室：配套清洗池，实现器皿清洗、沥干、存放一体化。
1、Biomedical laboratories: Storage of sterile culture dishes, pipettes and glass containers;
2、Hospital, PCR and CDC testing laboratories for clinical glassware storage;
3、Third-party food, water and cosmetic inspection labs;
4、University chemistry, environmental and agricultural teaching labs;
5、Chemical & material R&D labs for titration and distillation glassware;
6、GMP supporting analytical labs matched with sink stations for integrated washing & drying.
产品特征
01防腐密闭柜体：全钢款加厚冷轧钢板静电喷涂；PP 款一体聚丙烯成型，耐强酸强碱、有机溶剂腐蚀，柜体密封减少有害气体外泄。 Anti-corrosion sealed cabinet: Thick steel with epoxycoating or integral PP structure, resistant to acid, alkali and organic solvents. | 02防泄漏安全设计：底部一体化防渗集液槽，试剂倾倒渗漏时集中收集，避免腐蚀地面、引发危险。 Leak-proof sump: Integrated liquid collecting tank at bottom to contain spilled chemicals. |
03通风排风系统：柜体顶部预留排风接口，可外接通风管道，持续排出内部挥发性有毒气体。 Ventilation outlet: Top exhaust port to connect duct system for volatile gas discharge. | 04分层承重置物层板：多层可调节承重层板，分区分类存放试剂，层板可自由调整高度。 Adjustable heavy-duty shelves: Multi-layer partition for classified reagent storage. |
05安全锁控防护：双点机械安全锁，双人管理钥匙，防止无关人员随意取用危险化学品。 Dual-point safety lock: Double-key lock to restrict unauthorized access to hazardous chemicals. | 06人性化五金结构：缓冲静音铰链、耐磨拉手，拆装式柜体，窄楼道方便搬运，支持现场组装。 Humanized hardware: Silent buffer hinges, detachable split cabinet for easy transportation and assembly. |
07多材质细分适配：普通试剂选全钢柜；氢氟酸、浓强酸选 PP 防腐柜；易燃易爆试剂选防爆柜。 Diversified types: All-steel for general reagents, PP for strong corrosives, explosion-proof for flammable chemicals. |
常规规格
1、立式双门落地器皿柜（主流款）
标准尺寸：900/1000/1200 (L)×450 (W)×1800 (H)，大容量多层网架，独立摆放；
2、台下内嵌器皿柜（配套实验台）
标准尺寸：900/1000/1200 (L)×750 (W)×800 (H)，嵌入实验台下方，节省空间；
3、悬挂式器皿柜（墙面小型）
标准尺寸：900/1000 (L)×300 (W)×600 (H)，安装于清洗池上方，就近沥干；
4、材质分型：全钢器皿柜、PP 防腐器皿柜；
5、支持非标定制：加高加宽、多层加厚网架、加大集水盘、加装强制排风风机。
1、Floor-standing Double-door Glassware Cabinet (Mainstream Model)
Standard Dimensions: 900/1000/1200 (L) × 450 (W) × 1800 (H). Equipped with large-capacity multi-layer racks, placed independently.
2、Under-bench Embedded Glassware Cabinet (Matching Lab Bench)
Standard Dimensions: 900/1000/1200 (L) × 750 (W) × 800 (H). Installed underneath lab benches to save space.
3、Wall-mounted Glassware Cabinet (Compact Wall Type)
Standard Dimensions: 900/1000 (L) × 300 (W) × 600 (H). Mounted above sinks for nearby air-drying of glassware.
4、Material Types: All-steel glassware cabinet, PP anti-corrosion glassware cabinet.
5、Customization Available: Heightened & widened sizes, thickened multi-layer racks, enlarged water collection trays, and optional forced exhaust fans.
技术参数
